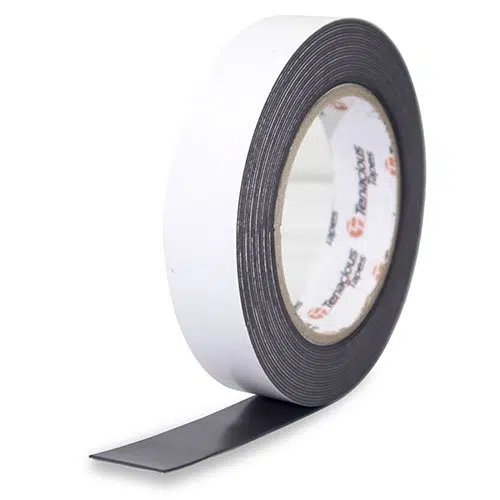

Self Adhesive Extruded Magnetic Profile

Price Range

From: $58.50 (Inc GST)

Colour:  Black

Roll Size:  9mm, 12.7mm and 25.4mm Widths in 30.5 Metre Lengths

Adhesive:  Acrylic Solvent

Description:  A 1.5mm thick extruded isotropic magnetic profile laminated with a non-woven acrylic pressure sensitive tape on a PE polycoated 110 micron paper liner. It has a high performance solvent acrylic, with excellent tack and initial adhesion. It is plasticiser and UV resistant, giving good ageing properties and good all-round weatherability, with high & low temperature resistance.

From: $58.50 (Inc GST)

Free shipping over $150Orders under $150? Flat rate fee of $15.00 Australia wide via Express Post.
Calculate

You can add here some information about Shipping rates. For example, table

Dispatch & Delivery TimesGoods are currently dispatched between 1 - 3 business days from Melbourne then sent via Australia Express Post. Estimated delivery times are as follows: Goods sent to SA, VIC, QLD metro usually arrive overnight once dispatched. Country areas take 2 days and goods sent to WA, 3 days.
Learn More
You can return this product for free. No matter the reason!
  • 30 days guarantee of return
  • No questions when you return
  • Simple exchange product to new
Add to compare

Colour:  Black

Roll Size:  9mm, 12.7mm and 25.4mm Widths in 30.5 Metre Lengths

Adhesive:  Acrylic Solvent

Description:  A 1.5mm thick extruded isotropic magnetic profile laminated with a non-woven acrylic pressure sensitive tape on a PE polycoated 110 micron paper liner. It has a high performance solvent acrylic, with excellent tack and initial adhesion. It is plasticiser and UV resistant, giving good ageing properties and good all-round weatherability, with high & low temperature resistance.

Application:  Designed as a closure or temporary holding system for a wide range of applications in the sign industry for illuminated sign boxes; exhibition signs, cabinets & displays; picture framers display boards, general sign & banner installations; shop fitting. Within the building industry it can be used as a closure system for shower screens, insect screens, door seals. Profile can be used as a single piece for holding objects to ferrous metals or as pairs (magnet to magnet). N.B. When using magnet to magnet it is important to ensure that one has opposite poles aligned so that the magnet will hold.

Technical Details:

Profile Thickness: 1.6mm
180º Peel Adhesion ASTM D3330: 8.4 N/25mm
Static Shear Adhes. 22°C 1kg/160mm2: 10,000 minutes
Magnetic Holding Force: 35g/cm2
Service Temperature: -20ºC to 80ºC
Short Term Temperature: 120ºC



Surface Preparation:  The surface on which the tape is to be used must be clean, dry and free from grease and dust. Remember that pressure sensitive adhesive must be applied with the maximum possible pressure in order to achieve maximum adhesion levels. The recommended application temperature is between 15ºC and 25ºC.

Storage:  Tapes stored below the minimum application temperature will require warming up to that level before use. Up to 24 hours may be required for this to take place.

Note:  The above figures represent average values. Actual figures can vary. The selection and application of a tape is the responsibility of the buyer. Tape should be stored at room temperature and should not be exposed to sunlight. We reserve the right to make changes without notice to our products and specifications.

Specification: Self Adhesive Extruded Magnetic Profile

Colour

Black

Roll Length

30.5

Width

12.7, 25.4

Dimensions
Weight 10 kg
Dimensions 10 × 10 cm
