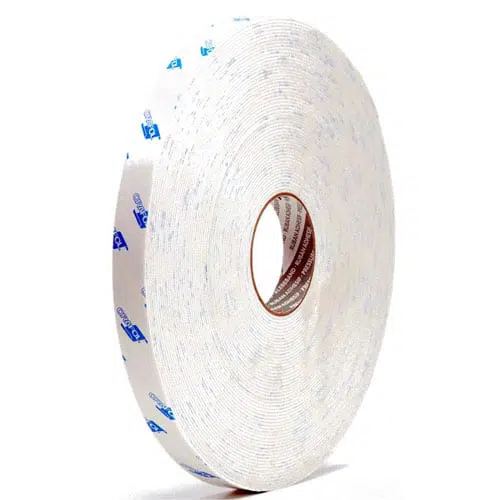

Double Sided Polyethylene Foam Tape S1819
Price Range
From: $11.77 (Inc GST)
Colour: White
Roll Size: 6mm to 1550mm in 10 and 33 Metre Lengths
Adhesive: Acrylic Modified
Description: This mounting tape consists of a white, closed-cell polyethylene foam coated on both sides with a modified solvent acrylate adhesive. The modified solvent acrylate adhesive possesses a high initial adhesion and a high shear strength. It is lined with a white silicone-coated paper on both sides, 90 g/m², with blue ORAFOL branding.
Related Products
Double Sided Polyethylene Foam Tape S1819 by Tenacious Tapes. Adhesive tape comparable to 3M 4016, Tesa 4978 Tape, Stylus 2116, PPC 5600 or Husky 9016. Order online from exclusive approved supplier Wayout Evacuation Systems.
Colour: White
Roll Size: 6mm to 1550mm in 10 and 33 Metre Lengths
Adhesive: Acrylic Modified
Description: This mounting tape consists of a white, closed-cell polyethylene foam coated on both sides with a modified solvent acrylate adhesive. The modified solvent acrylate adhesive possesses a high initial adhesion and a high shear strength. It is lined with a white silicone-coated paper on both sides, 90 g/m², with blue ORAFOL branding.
Application: For the installation of spray cast and extruded plastic parts such as panels, bars and ducts, as well as plexiglass mirrors for interior fit-outs and displays. For use as an adhesive medium for hooks, signs, handles and dispensers on even surfaces.
Technical Details:
| Tape Thickness: | 2.1mm |
| Loop Tack (FINAT-TM9): | 30 N/25mm |
| Adhesion Power | FINMAT-TM1 on Stainless Steel one side covered with 50um polyester film: |
| 1 minute: | 18 N/25mm |
| 20 minutes: | 19 N/25mm, foam tear |
| 24 hours: | 19 N/25mm, foam tear |
| Shear Strength | FINAT-TM8 on Stainless Steel one side covered with 50 um polyester film: |
| 23°C | >300 hours |
| 70°C | 3 hours |
| Application Temperature: | >+15°C |
| Service Temperature: | -40°C to +100°C |
| Shelf Life: | 24 Months at 20ºC 50% RH |
Surface Preparation: The surface on which the tape is to be used must be clean, dry and free from grease and dust. Remember that pressure sensitive adhesive must be applied with the maximum possible pressure in order to achieve maximum adhesion levels. The recommended application temperature is between 15ºC and 25ºC.
Storage: Tapes stored below the minimum application temperature will require warming up to that level before use. Up to 24 hours may be required for this to take place.
Note:
The above figures represent average values. Actual figures can vary. The selection and
application of a tape is the responsibility of the buyer. Tape should be stored at room
temperature and should not be exposed to sunlight. We reserve the right to make changes
without notice to our products and specifications.
Specification: Double Sided Polyethylene Foam Tape S1819
|
||||||
| Dimensions | ||||||
|---|---|---|---|---|---|---|
|
||||||
