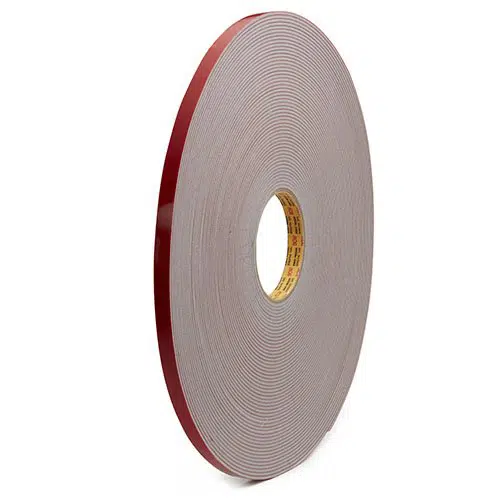

Double Sided Foamed Acrylic – Bonding Tape T723GX
Price Range
From: $49.49 (Inc GST)
Colour: Grey
Roll Size: 6mm to 430mm in 33 Metre Lengths
Adhesive: Acrylic Foamed Acrylic Modified
Description: A Grey 2.3mm Foamed Acrylic Tape designed for applications where a very high permanent bond is required. A high performance coated foamed acrylic adhesive. It is plasticiser and UV resistant, giving good ageing properties. It is on a red plastic release liner suitable for die cutting
Related Products
Double Sided Foamed Acrylic – Bonding Tape T723GX by Tenacious Tapes. Adhesive tape comparable to 3M 4991 Tape, Tesa 7078ACX or Husky A3200G Tape. Order online from exclusive approved supplier Wayout Evacuation Systems.
Colour: Grey
Roll Size: 6mm to 430mm in 33 Metre Lengths
Adhesive: Acrylic Foamed Acrylic Modified
Description: A Grey 2.3mm Foamed Acrylic Tape designed for applications where a very high permanent bond is required. A high performance coated foamed acrylic adhesive. It is plasticiser and UV resistant, giving good ageing properties. It is on a red plastic release liner suitable for die cutting.
Application: For structural bonding of metals and plastics. Typical applications include: signage, display, shopfitting, trim mounting, badge/nameplate mounting. Particularly for applications bonding dissimilar materials where differential expansion and contraction may be encountered.
Technical Details:
| Tape Thickness: | 2.30mm |
| Density: | 800 Kg/cm3 |
| Elongation at Break: | 1000% |
| 180° Peel adhesion: | |
| After 30 Mins @ 23ºC | 22.0 N/cm |
| After 30 Mins @ -30ºC | 21.0 N/cm |
| After 40 Mins @ 80ºC | 26.0 N/cm |
| After 24 Hours @ 23ºC | 25.0 N/cm |
| Dynamic Shear (200mm/min, 10mm x 10mm) | |
| After 30 Minutes @ 80°C | 5.2 Kg/cm2 |
| After 30 Minutes @ -30°C | 4.1 Kg/cm2 |
| After 30 Mins @ 23°C in gasoline | 3.6 Kg/cm2 |
| After 24 Hours @ 23°C | 4.6 Kg/cm2 |
| After 168 Hours @ 40°C in water | 4.8 Kg/cm2 |
| Service Temperature: | -30°C to +120°C |
| Shelf Life: | 12 Months |
Surface Preparation: The surface on which the tape is to be used must be clean, dry and free from grease and dust. Remember that pressure sensitive adhesive must be applied with the maximum possible pressure in order to achieve maximum adhesion levels. The recommended application temperature is between 15ºC and 25ºC.
Storage: Tapes stored below the minimum application temperature will require warming up to that level before use. Up to 24 hours may be required for this to take place.
Note: The above figures represent average values. Actual figures can vary. The selection and application of a tape is the responsibility of the buyer. Tape should be stored at room temperature and should not be exposed to sunlight. We reserve the right to make changes without notice to our products and specifications.
Specification: Double Sided Foamed Acrylic – Bonding Tape T723GX
|
||||||
| Dimensions | ||||||
|---|---|---|---|---|---|---|
|
||||||
