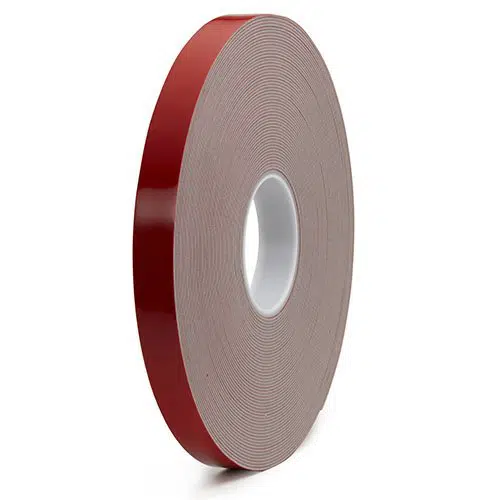

Double Sided Foamed Acrylic – Bonding Tape T716GX

Price Range

From: $41.97 (Inc GST)

Colour:  Grey

Roll Size:  6mm to 460mm in 33 Metre Lengths

Adhesive:  Acrylic Foamed Acrylic Modified

Description:  A Grey 1.6mm Foamed Acrylic Tape designed for applications where a very high permanent bond is required. A high performance foamed acrylic adhesive. High density version for improved die cutting characteristics. It is plasticiser and UV resistant, giving good ageing properties. It is on a red plastic release liner suitable for die cutting.

From: $41.97 (Inc GST)

Free shipping over $150Orders under $150? Flat rate fee of $15.00 Australia wide via Express Post.
Calculate

You can add here some information about Shipping rates. For example, table

Dispatch & Delivery TimesGoods are currently dispatched between 1 - 3 business days from Melbourne then sent via Australia Express Post. Estimated delivery times are as follows: Goods sent to SA, VIC, QLD metro usually arrive overnight once dispatched. Country areas take 2 days and goods sent to WA, 3 days.
Learn More
You can return this product for free. No matter the reason!
  • 30 days guarantee of return
  • No questions when you return
  • Simple exchange product to new
Add to compare

Double Sided Foamed Acrylic – Bonding Tape T716GX by Tenacious Tapes. Adhesive tape comparable to 3M 4956, 3M 4957, Tesa 7066ACX or PPC 5200. Order online from exclusive approved supplier Wayout Evacuation Systems.

Colour:  Grey

Roll Size:  6mm to 460mm in 33 Metre Lengths

Adhesive:  Acrylic Foamed Acrylic Modified

Description:  A Grey 1.6mm Foamed Acrylic Tape designed for applications where a very high permanent bond is required. A high performance foamed acrylic adhesive. High density version for improved die cutting characteristics. It is plasticiser and UV resistant, giving good ageing properties. It is on a red plastic release liner suitable for die cutting.

Application: Structural bonding in the construction industry. Mounting architectural panels and automotive coachwork for attaching skins to frames.

Technical Details:

Tape Thickness: 1.60mm
Elongation at Break: 1000%
180° Peel adhesion:
After 30 Mins @ 23ºC 22.0 N/cm
After 30 Mins @ -30ºC 17.0 N/cm
After 40 Mins @ 80ºC 29.0 N/cm
After 24 Hours @ 23ºC 25.0 N/cm
Dynamic Shear (200mm/min, 10mm x 10mm)
After 30 Minutes @ 80°C 5.0 Kg/cm2
After 30 Minutes @ -30°C 4.2 Kg/cm2
After 30 Mins @ 23°C in gasoline 3.5 Kg/cm2
After 24 Hours @ 23°C 5.4 Kg/cm2
After 168 Hours @ 40°C in water 5.2 Kg/cm2
Service Temperature: -30°C to +120°C
Shelf Life: 12 Months



Surface Preparation: The surface on which the tape is to be used must be clean, dry and free from grease and dust. Remember that pressure sensitive adhesive must be applied with the maximum possible pressure in order to achieve maximum adhesion levels. The recommended application temperature is between 15ºC and 25ºC.

Storage:  Tapes stored below the minimum application temperature will require warming up to that level before use. Up to 24 hours may be required for this to take place.

Note:  The above figures represent average values. Actual figures can vary. The selection and application of a tape is the responsibility of the buyer. Tape should be stored at room temperature and should not be exposed to sunlight. We reserve the right to make changes without notice to our products and specifications.

Specification: Double Sided Foamed Acrylic – Bonding Tape T716GX

Colour

Grey

Roll Length

33

Width

6, 12, 18, 24, 36, 48, Custom

Dimensions
Weight 10 kg
Dimensions 10 × 10 cm
