Double Sided Foamed Acrylic – Bonding Tape Also TC710 Tabs 25mm x 25mm
Price Range
From: $29.19 (Inc GST)
Colour: Clear
Roll Size: 6mm to 930mm in 33 Metre Lengths
Adhesive: Acrylic Polymer

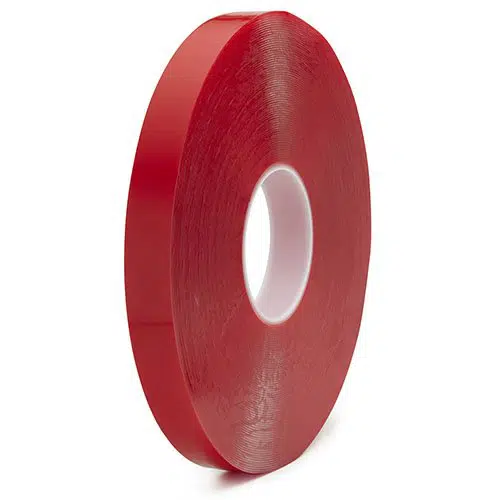

Description: A Clear 1.0mm Foamed Acrylic Tape designed for applications where a very high permanent bond is required. It has a high performance acrylic adhesive/foam. It is plasticiser and UV resistant, giving good ageing properties. It is on a red plastic release liner suitable for die cutting.
Related Products
Double Sided Foamed Acrylic – Bonding Tape Also TC710 Tabs 25mm x 25mm by Tenacious Tapes. Adhesive tape comparable to 3M 4910 tapes, Tesa 7055ACX Tape, Stylus 5400. Order online from exclusive approved supplier Wayout Evacuation Systems.
Colour: Clear
Roll Size: 6mm to 930mm in 33 Metre Lengths
Adhesive: Acrylic Polymer
Description: A Clear 1.0mm Foamed Acrylic Tape designed for applications where a very high permanent bond is required. It has a high performance acrylic adhesive/foam. It is plasticiser and UV resistant, giving good ageing properties. It is on a red plastic release liner suitable for die cutting.
Application: Permanent bonding of acrylic, polycarbonate, clear plastics and glass. Sign and display trade particularly for bonding dissimilar surfaces that expand and contract at different rates.
Technical Details:
| Tape Thickness: | 1.0mm |
| Elongation at Break: | 1000% |
| 180° Peel adhesion: | |
| After 30 Mins @ 23ºC | 13.0 N/cm |
| After 30 Mins @ -30ºC | 11.0 N/cm |
| After 40 Mins @ 80ºC | 17.0 N/cm |
| After 24 Hours @ 23ºC | 15.0 N/cm |
| Dynamic Shear (200mm/min, 10mm x 10mm) | |
| After 30 Mins @ 80ºC | 6.9 kg/cm2 |
| After 30 Mins @ -30ºC | 5.2 kg/cm2 |
| After 30 Mins @ 23ºC in gasoline | 4.9 kg/cm2 |
| After 24 Hours @ 23ºC | 6.7 kg/cm2 |
| After 168 Hours @40ºC in water | 6.3 kg/cm2 |
| Service Temperature: | -30°C to +150°C |
| Shelf Life: | 12 Months |
Surface Preparation: The surface on which the tape is to be used must be clean, dry and free from grease and dust. Remember that pressure sensitive adhesive must be applied with the maximum possible pressure in order to achieve maximum adhesion levels. The recommended application temperature is between 15ºC and 25ºC.
Storage: Tapes stored below the minimum application temperature will require warming up to that level before use. Up to 24 hours may be required for this to take place.
Note: The above figures represent average values. Actual figures can vary. The selection and application of a tape is the responsibility of the buyer. Tape should be stored at room temperature and should not be exposed to sunlight. We reserve the right to make changes without notice to our products and specifications.
Specification: Double Sided Foamed Acrylic – Bonding Tape Also TC710 Tabs 25mm x 25mm
|
||||||
| Dimensions | ||||||
|---|---|---|---|---|---|---|
|
||||||
